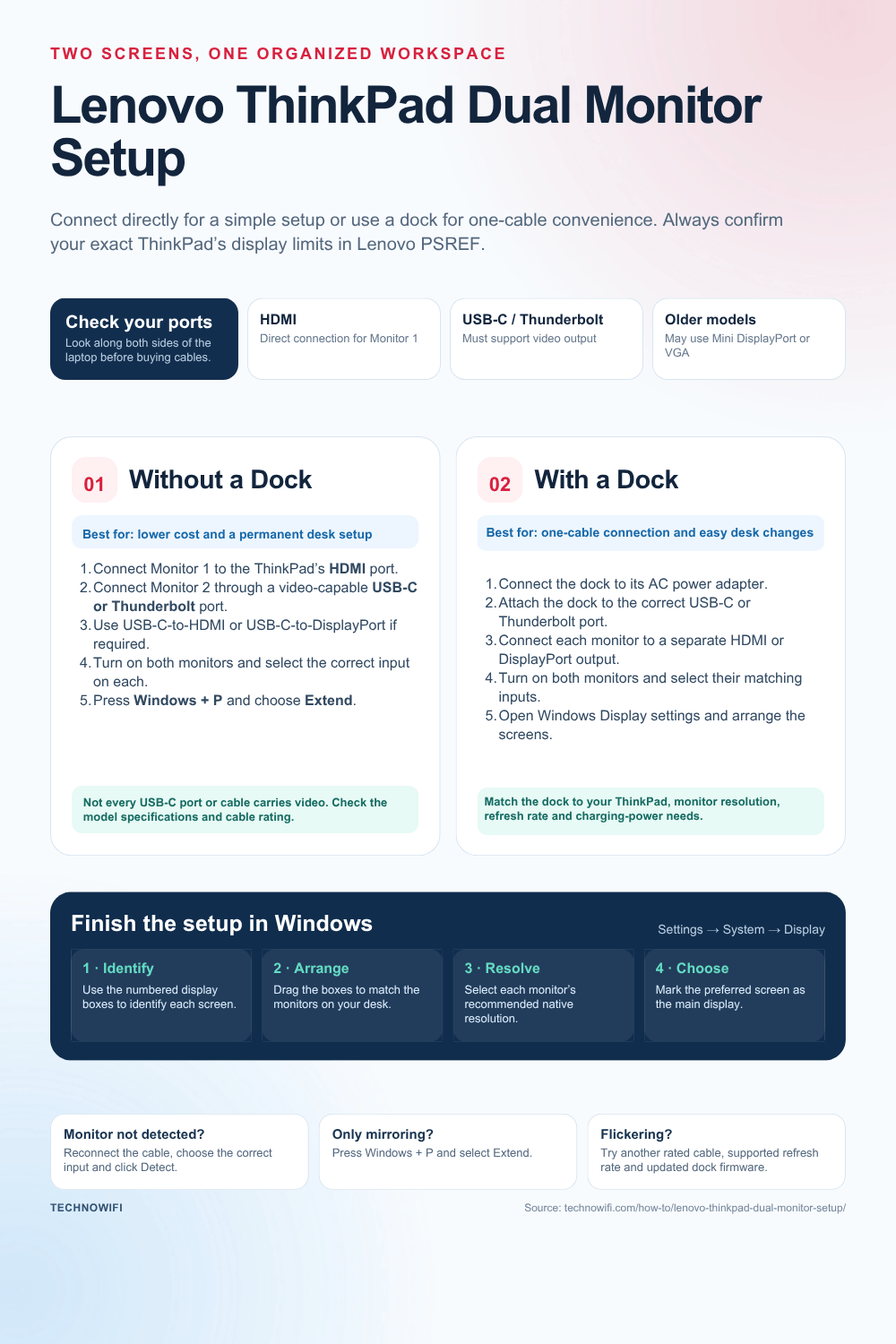

Lenovo ThinkPad Dual Monitor Setup

Setting up a dual monitor with a Lenovo ThinkPad is pretty simple. Following these simple steps, you can connect your Lenovo ThinkPad to two monitors.

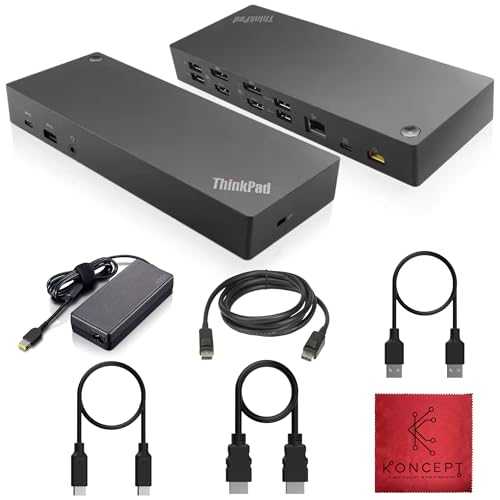

Consider using a Lenovo docking station that supports USB-C connectivity for a streamlined and efficient dual monitor setup with your Lenovo ThinkPad. This ensures it matches your laptop’s specifications for optimal performance.

Before proceeding, ensure you have all necessary accessories, such as HDMI cables or adapters, corresponding to the video ports on your ThinkPad and monitors.

Recommended Steps for Lenovo ThinkPad Dual Monitor Setup

Method 1. Establishing Connections via External Connectors

To better understand the location and types of connectors available on the laptop, refer to the manufacturer’s official website.

Step 1. Open the Dialog Box

To open the project dialog, press the Windows logo + P keys. Note that the specific function key for this feature, like F7, may vary based on your ThinkPad model or may not be required. Alternatively, press the Windows logo + P keys to open the project dialog box and select your screen-sharing preferences (duplicate, extend, or second screen only). Depending on your ThinkPad model, the specific function key (e.g., F7) might vary or be unnecessary.

Step 2. Select Screen-Sharing Options

Select screen-sharing options like duplicate, extend, or second screen only to use the external monitor.

Once you physically connect your Lenovo laptop to external monitors, Windows will automatically select the correct display resolution.

If you face issues with resolution, adjust the display settings manually.

Method 2. Lenovo Dual Monitor Setup by Using Other Ports

Step 1. Check the Available Ports

Before you begin connecting wires to the rear ports of your computer or the edges of your laptop, stop and examine those ports.

While modern PCs commonly feature an HDMI port, it’s important to check your ThinkPad and monitors for the types of ports available, including HDMI, DisplayPort, DVI, VGA, or Thunderbolt, to ensure compatibility

HDMI: The High Definition Multimedia Interface port is a PC interface that transmits uncompressed video and audio.

Display Port: While HDMI is widely used for high-definition audio and video, DisplayPort can offer higher performance in specific configurations, such as higher refresh rates and resolutions. Ensure you use the port that best matches your monitor’s capabilities and the tasks you’ll be performing.

DVI: The Digital Visual Interface was initially a cutting-edge solution to the second-class VGA port. Many older PCs have one of several configurations of the DVI port.

Thunderbolt ports offer multiple advantages, such as integrating DisplayPort and PCI Express functionalities, and can independently power external displays, providing versatility for connecting monitors.

VGA: Older PCs typically have the popular blue VGA port. The 15-pin VGA has been utilized for PC video over a long period, but current video ports like Thunderbolt and HDMI are more reliable.

Generally, if there are two ports on your PC, the video card can usually deliver an output signal to both.

However, your desktop may have available slots for additional video cards. Even if there’s only one port on your desktop, you should check for suitable video card slots.

Regarding laptops, another option is to purchase and use compatible docking stations.

This could expand your PC into a docking station with two or more ports. Considering additional graphics cards or using a docking station with multiple ports can be beneficial for achieving a dual-screen setup, especially for desktops or laptops with limited video output options.

Step 2. Check Your Video Card Settings

If your ThinkPad has multiple video output ports but doesn’t display on both monitors simultaneously, check your graphics card settings or the display settings in Windows to enable and configure multiple displays.

Plug in the two screens, click on the start menu, type Display, and click “change display settings” (Shortcut Control + P).

Now go to the display settings section > multiple displays. You will notice screens labeled as disabled, primary, or secondary display.

Move to the next page, where you will see the display adapter properties. Select the total number of monitors you’ve plugged in.

If the number of monitors is more than one, your graphic card supports displaying multiple monitors.

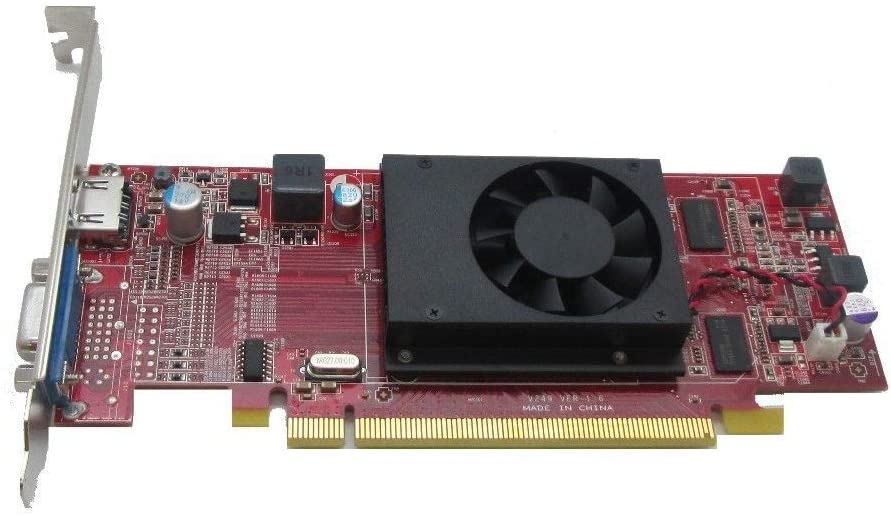

Step 3. Checking the Graphics Card

If you are uncertain whether the computer can support the external monitors, research the graphics card.

To check your graphics card’s capabilities, right-click on the Start menu, select ‘Device Manager,’ navigate to ‘Display adapters,’ and examine the listed graphics card to confirm support for multiple monitors

Summing It Up

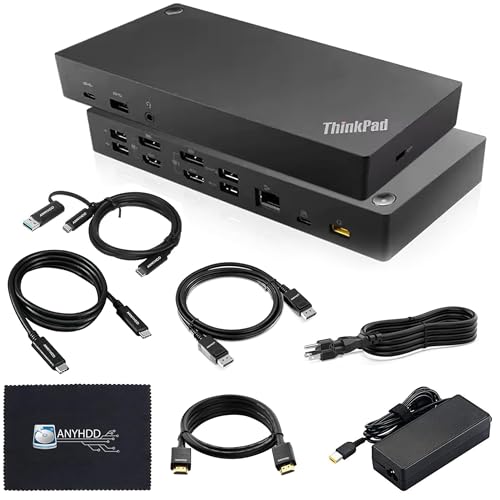

If you face any issues setting up a dual monitor using your Lenovo laptop, consider getting a Lenovo docking station. A Lenovo docking station will provide a much more reliable dual monitor connection experience every time.

Following the abovementioned steps, you can quickly establish the Lenovo ThinkPad Dual Monitor Setup.

These adjustments enhance readability and ensure consistency in the format and presentation of the setup instructions.
