Connecting Your Arlo Camera to a WiFi Extender
If your Arlo camera is too far from your router to get a reliable signal, connecting it through a WiFi extender can solve the problem. It gives you more freedom with camera placement without sacrificing connection quality.
This is a common issue for people with larger properties or homes where the router sits on one end of the building and the camera needs to go on the other. A WiFi extender bridges that gap and keeps the signal strong enough for smooth video streaming.
A WiFi extender works as a bridge, boosting the wireless signal between your devices and the router. Knowing the difference between a WiFi extender and a WiFi booster helps you pick the right device.
Before you start, make sure your WiFi extender has an Ethernet port. You’ll need it for the connection.
Which Arlo Models Can Connect to a WiFi Extender?
Not all Arlo cameras connect to WiFi extenders the same way. The Arlo Q is the simplest to set up because it connects directly to your WiFi network without needing a base station. That means you can point it at your extender’s network and you’re done.
Other models, including the Arlo Pro, Arlo Pro 2, Arlo Pro 3, Arlo Pro 4, and Arlo Ultra series, use a base station (also called a SmartHub on newer models). These cameras talk to the base station over a proprietary wireless protocol, not WiFi. So the camera itself doesn’t connect to your extender. Instead, you connect the base station to the extender using an Ethernet cable.

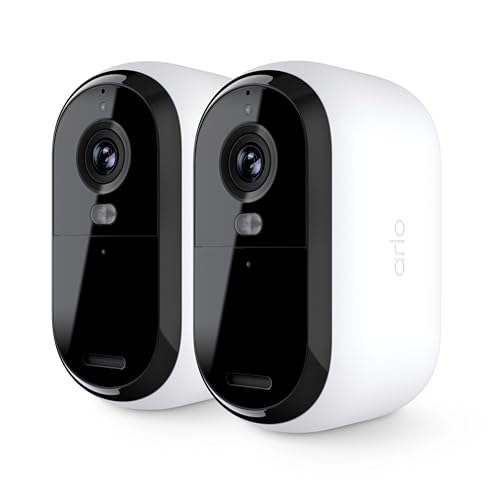

The Arlo Essential series (both wired and wireless) connects directly to WiFi like the Arlo Q, so those can also work with an extender without a base station.
Step-by-Step Instructions for Connecting the Arlo Camera to the WiFi Extender
First, gather everything you’ll need:
– A WiFi router
– A WiFi Extender
– An Arlo base station or Arlo Wireless Camera
– An Ethernet Cable for the Arlo base station
Here’s the process:
– Set up the WiFi range extender according to its user manual and connect it to your WiFi network.
– Pick where you want to place both the WiFi extender and the Arlo camera.
– Turn on the Arlo Camera and wait until it’s ready to connect.
– Connect the devices by entering the SSID and password of the WiFi extender.
– Open the Arlo app and test the connection.
This method works specifically for the Arlo Q, which can connect directly to a WiFi extender. Other Arlo models need to go through a base station first, and the base station then connects to the extender.
For other Arlo models using a base station:
– Install the WiFi extender and connect it to your network following the manual.
– Confirm the WiFi extender has an Ethernet port.
– Pair the Arlo camera with the base station on the same WiFi network.
– Run an Ethernet cable from the Arlo base station to the WiFi extender.
– Power on the base station and wait for the Power and Internet LED to turn green.
– Check the Arlo app to confirm everything is working and test the camera feed.
Placement Tips for Your WiFi Extender and Arlo Camera
Where you place the extender matters a lot. If it’s too far from the router, it picks up a weak signal and just amplifies that weak signal. That doesn’t help your camera much.
Halfway rule
Place the WiFi extender roughly halfway between your router and the Arlo camera (or base station). This gives the extender a strong signal from the router while still being close enough to the camera to deliver reliable performance.
Avoid interference
Keep the extender away from microwaves, cordless phones, baby monitors, and other electronics that use the 2.4 GHz band. These devices cause interference that can degrade your camera’s video stream.
Height matters
WiFi signals travel best in open air. Mounting the extender at outlet height (a few feet off the ground) is fine for most setups. If you can plug it into a higher outlet, even better. Avoid placing it behind large furniture, inside cabinets, or near thick walls.
Check the signal strength
Most WiFi extenders have LED indicators that show signal strength. After placing the extender, check these lights to confirm the connection to your router is solid. If the signal indicator shows weak, try moving the extender closer to the router.
Troubleshooting Common Connection Issues
Even with a good setup, things can go wrong. Here are the most common problems and how to fix them.
Camera keeps disconnecting
This usually means the signal between the extender and the router is too weak. Move the extender closer to the router and test again. Also check that your extender’s firmware is up to date.
Base station won’t connect via Ethernet
Make sure the Ethernet cable is plugged in firmly on both ends. Try a different cable if you have one. Some extenders have multiple Ethernet ports, so try each one. If the base station’s Internet LED stays amber or off, power cycle both the extender and the base station.
Video feed is laggy or choppy
Laggy video often points to bandwidth issues. If other devices on your network are streaming video or downloading large files, they may be eating up the bandwidth your camera needs. Try switching the extender to a less crowded WiFi channel using the extender’s settings page.
Camera shows offline in the Arlo app
Open the Arlo app, go to Settings, then My Devices, and select the camera. Try removing the camera and re-adding it. If that doesn’t work, restart both the base station and the WiFi extender.
FAQs About Arlo Cameras and WiFi Extenders
Q. Is there a WiFi extender for the Arlo Pro 2 camera?
A. The Arlo Pro 2 connects through a base station and can’t link directly to a WiFi extender. Use the base station steps listed above.
Q. How far can the Arlo camera be from the base station?
A. Arlo’s wire-free cameras should stay within 300 feet (90 meters) of the SmartHub or base station. Walls, trees, and other obstacles will shorten that range. In practice, expect closer to 100 to 150 feet indoors because of walls and furniture.
Q. Do I need also to connect my Arlo camera to the WiFi router?
A. No. Once your Arlo camera is connected to the WiFi extender, there’s no need for a separate router connection. The extender bridges the gap between the camera (or base station) and the router.
Q. Can I connect the Arlo camera and WiFi extender without using an Ethernet cable?
A. You’ll need an Ethernet cable for this setup. The cameras and base station are designed to connect to a WiFi extender through a wired Ethernet connection.
Q. Will a WiFi extender slow down my Arlo camera’s performance?
A. It can, but usually by a small amount. WiFi extenders repeat the signal, which adds a tiny bit of latency. For security camera use, this is rarely noticeable. If speed is a concern, look for a dual-band extender that uses one band to communicate with the router and the other to serve your devices.
Bottom Line for Connecting Arlo Camera to WiFi Extender
Setting up an Arlo Q with a WiFi extender is simple once you have the right Ethernet cable and follow the steps above. For other Arlo models, always connect through the base station first. The key to a reliable setup is good extender placement. Put it in the right spot, keep it away from interference sources, and make sure the firmware stays updated.
If something doesn’t work after connecting, try disconnecting and re-establishing the connection to troubleshoot. In most cases, a quick power cycle of the extender and base station resolves the issue.
