HP Docking Station Compatibility Guide (2026)

When you purchase through links on our site, we may earn an affiliate commission. Here’s how it works.

HP docking station compatibility comes down to two things: the type of port on your laptop and the docking standard the dock uses. Get the match right and you plug in one cable for power, dual monitors, Ethernet, USB peripherals, and audio. Get it wrong and nothing happens. The dock won’t even recognize your laptop.

HP has used three different docking connection types over the years. Older EliteBook and ProBook models (pre-2018) used a proprietary side connector that only worked with specific HP docks. Current models use USB-C or Thunderbolt, which share the same physical port but support different levels of performance. This guide covers which HP laptops work with which docks, how to check compatibility for your specific model, and what to expect from each dock type.

What Types of HP Docking Stations Exist

HP makes four categories of docking stations. Each one connects differently and supports different laptops. Buying the wrong type is the most common compatibility mistake.

HP proprietary docking stations use a side connector unique to certain HP business laptops. These include the HP UltraSlim Docking Station (D9Y32AA) and the HP 2013 UltraSlim Docking Station. They connect through a multi-pin connector on the bottom or side of the laptop. Only HP EliteBook and ProBook models from roughly 2013 to 2018 have this connector. If your laptop doesn’t have the physical slot, these docks won’t work at all.

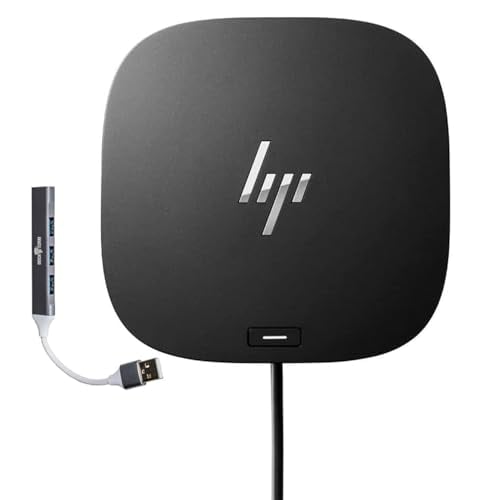

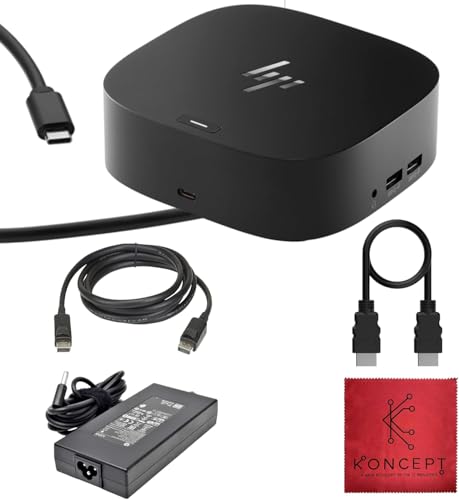

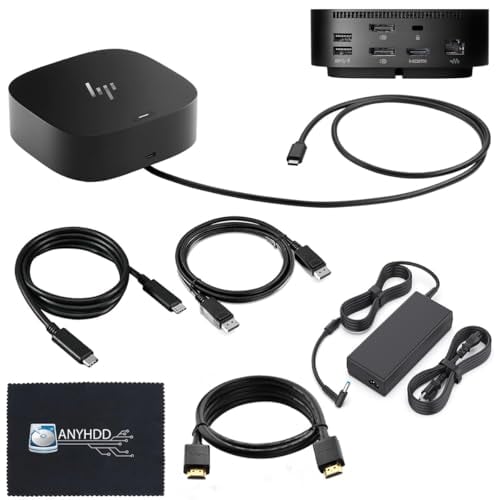

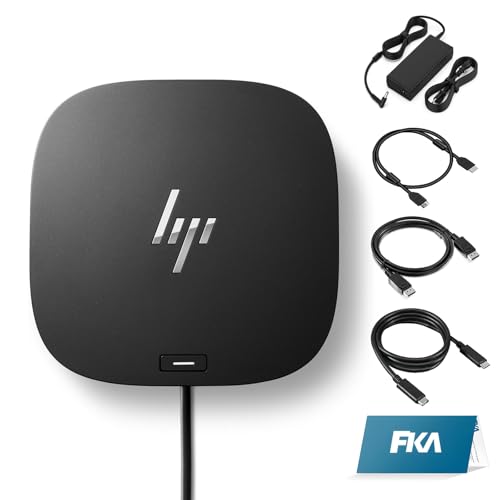

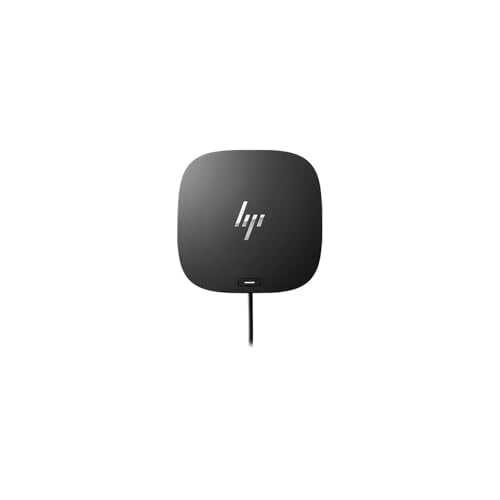

HP USB-C docking stations connect through the standard USB-C port found on most modern HP laptops. The USB-C Dock G5 is the current mainstream model. These docks deliver power, video, data, and network through a single USB-C cable. They work with any HP laptop that has a USB-C port supporting DisplayPort Alt Mode and power delivery.

HP Thunderbolt docking stations connect through Thunderbolt 3 or Thunderbolt 4 ports, which use the same physical USB-C connector but offer faster data transfer and support for more displays. The HP Thunderbolt Dock G4 (120W) is the current flagship. Thunderbolt docks are backward compatible with USB-C, but you lose some features (like dual 4K output) when connected to a USB-C-only port.

Universal USB-A docking stations connect through a standard USB-A port using DisplayLink technology. These work with virtually any laptop, including older HP models without USB-C. The trade-off is performance: DisplayLink uses software-based video processing, which adds slight CPU overhead and doesn’t handle gaming or high-refresh video well.

Which HP Laptops Are Compatible With Which Docking Stations

Compatibility breaks down by laptop series and age. Newer HP business laptops (2020 and later) almost universally work with USB-C and Thunderbolt docks. Older models depend on which ports they have.

HP EliteBook 800/830/840/850/860 series (2020+): These have Thunderbolt 4 ports and work with both the HP Thunderbolt Dock G4 and the HP USB-C Dock G5. Full dual 4K monitor support with Thunderbolt. The EliteBook is HP’s flagship business line and has the broadest dock compatibility of any HP laptop.

HP EliteBook 800 series (2013-2019): Older models in this range may have the proprietary side docking connector. Check the bottom of your laptop for a multi-pin slot. If it has one, the HP UltraSlim Docking Station works. These models may also have USB-C or Thunderbolt 3 ports depending on the year and configuration. Models from 2016-2019 often have both the proprietary connector and USB-C/Thunderbolt.

HP ProBook 440/450/640/650 series (2020+): Most current ProBooks have USB-C with DisplayPort Alt Mode. They work with the HP USB-C Dock G5. Some ProBook models include Thunderbolt, but not all. Check your specific model’s spec sheet. ProBooks are HP’s mid-range business line and typically support the USB-C dock, though not always the Thunderbolt dock at full capability.

HP ZBook Firefly/Power/Studio/Fury: HP’s workstation laptops all support Thunderbolt docking. The ZBook line is built for demanding workflows and pairs well with the Thunderbolt Dock G4 for dual 4K output while charging. ZBook Studio and Fury models support Thunderbolt 4.

HP Envy and Spectre: These consumer laptops have USB-C ports and generally work with USB-C docks. Some Spectre models include Thunderbolt. They work with the HP USB-C Dock G5, but they aren’t officially listed in HP’s enterprise dock compatibility sheets since they’re consumer products.

HP Pavilion and HP Laptop series: Budget and mid-range consumer HP laptops vary widely. Some have USB-C with DisplayPort Alt Mode, others have USB-C for charging only (no video output). Check whether your specific model supports “DisplayPort over USB-C” in its specs. If it doesn’t, a USB-C dock won’t output video even though the cable fits physically.

How to Check If Your HP Laptop Is Compatible With a Dock

The fastest method is HP’s own compatibility tool. Go to support.hp.com, enter your laptop’s product number (found on a label on the bottom of the laptop or in Settings > System > About on Windows), and look at the product specifications page. The “Ports” section tells you exactly what type of USB-C or Thunderbolt port your laptop has.

Look for these specific phrases in the specs: “Thunderbolt 4 with USB4 Type-C” means full Thunderbolt dock compatibility. “USB Type-C 3.2 Gen 2 with DisplayPort 1.4 and Power Delivery” means USB-C dock compatibility with video output and charging. “USB Type-C 3.2 Gen 1” without mention of DisplayPort means data only, no video output through that port.

The physical port shape is NOT enough to determine compatibility. Every Thunderbolt port looks identical to a USB-C port. A USB-C port that only supports data transfer looks identical to one that supports video and power delivery. The only reliable way to know is checking the spec sheet or looking for the Thunderbolt lightning bolt icon next to the port on the laptop itself.

If your laptop has a small lightning bolt icon printed next to the USB-C port, that port supports Thunderbolt. If it has a small “D” shaped DisplayPort icon, it supports video output over USB-C. If it has neither icon, check the specs online before buying a dock.

HP Thunderbolt Dock G4 vs HP USB-C Dock G5

These are HP’s two current mainstream docking stations, and the choice between them comes down to your laptop’s ports and how many monitors you need.

The HP Thunderbolt Dock G4 (4J0A2AA) delivers up to 120W of power, supports two 4K displays at 60Hz at the same time, and has Thunderbolt 4 downstream ports for daisy-chaining additional Thunderbolt devices. It connects via Thunderbolt and costs roughly $300-350. This is the dock for users who need dual 4K monitors and maximum peripheral connectivity.

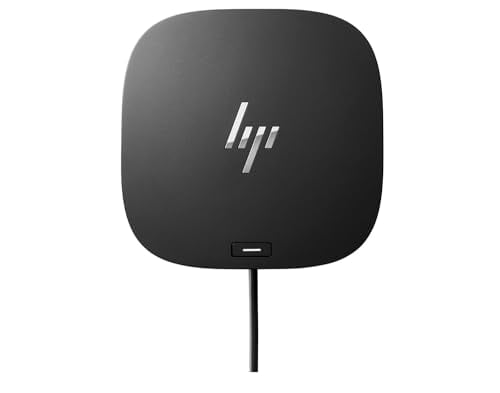

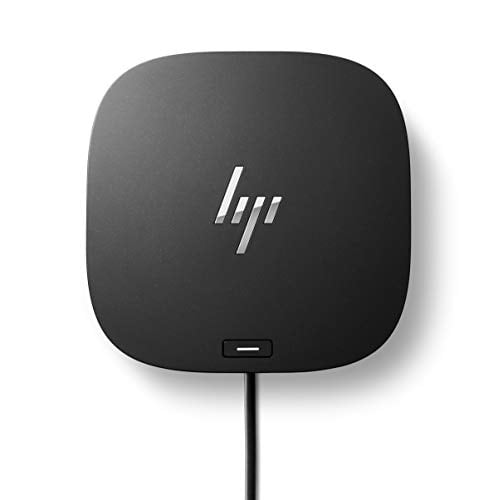

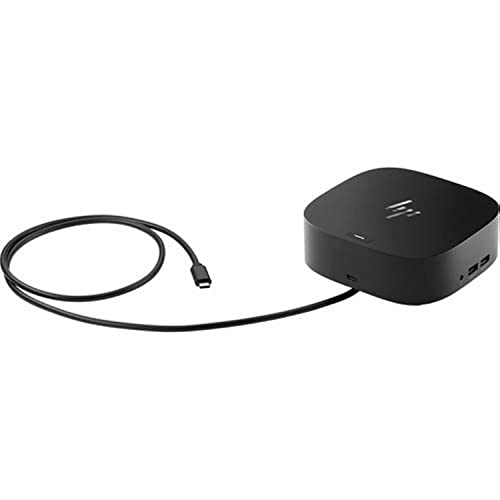

The HP USB-C Dock G5 (72C71AA) delivers up to 100W of power, supports one 4K display at 60Hz or two 1080p displays, and connects via standard USB-C. It costs roughly $180-250. For most office workers running one or two 1080p monitors, this dock does everything you need at a lower price.

One important detail: the Thunderbolt Dock G4 does work when plugged into a USB-C-only port, but it falls back to USB-C speeds and display limits. You get the same display output as the cheaper USB-C Dock G5. So if your laptop only has USB-C (not Thunderbolt), save your money and buy the G5.

Do Third-Party Docking Stations Work With HP Laptops

Yes. USB-C and Thunderbolt are universal standards. A CalDigit TS4, Anker 563, Plugable UD-6950PDZ, or any other USB-C/Thunderbolt dock works with HP laptops that have the right port. You don’t need an HP-branded dock.

The main advantage of HP-branded docks is manageability. In enterprise environments, HP docks support HP Device Manager for remote firmware updates, MAC address pass-through for network security, and PXE boot for IT deployment. If you’re buying for a company with an IT department managing hundreds of docks, HP docks fit into that management stack. For home and small office use, third-party docks work the same way and often cost less.

The one exception is the proprietary HP UltraSlim connector on older EliteBooks and ProBooks. That connector is HP-specific and no third-party dock supports it. If you have a laptop with that connector and want a third-party dock, you’ll need to use the laptop’s USB-C or USB-A port instead.

How Many Monitors Can an HP Docking Station Support

Monitor support depends on the dock model, the laptop’s GPU, and the resolution of your monitors. The dock provides the physical video ports, but the laptop’s graphics processor determines how many displays it can actually drive.

Most Intel-based HP business laptops from 2020 onward support at least two external displays through a Thunderbolt dock. With a USB-C dock, the typical limit is one 4K display or two 1080p displays. AMD-based HP laptops vary more widely, so check your specific model’s external display specs.

If you need three monitors (two external plus the laptop screen), a Thunderbolt dock typically handles this. For three external monitors with the laptop lid closed, you may need a dock with DisplayLink technology alongside native display outputs, or a Thunderbolt dock that supports daisy-chaining.

DisplayPort MST (Multi-Stream Transport) is required for driving two independent displays from a single connection. Both the dock and the laptop must support MST. All HP Thunderbolt and USB-C docks do. If your monitors only have HDMI inputs, you’ll need DisplayPort-to-HDMI adapters or cables.

HP Docking Station Not Working: Troubleshooting

If you plug in an HP dock and nothing happens (no video, no charging, no USB devices), the first thing to check is the connection itself. The USB-C cable must be fully seated in both the dock and the laptop. USB-C connectors can feel connected when they’re slightly loose. Push the cable firmly until it clicks.

If the dock powers on (LED lights up) but no video shows on the monitors, the issue is usually the laptop’s port. Make sure you’re plugging into a USB-C or Thunderbolt port that supports video output, not a USB-C port that only handles data or charging. HP laptops with multiple USB-C ports sometimes have only one that supports docking. Check the icons next to each port.

Driver updates fix a large percentage of docking issues. Go to support.hp.com, enter your laptop model, and download the latest Thunderbolt driver, USB-C driver, and display driver. Windows Update doesn’t always install the correct HP-specific versions. The HP Support Assistant app (pre-installed on most HP laptops) can scan for and install missing drivers automatically.

Firmware matters too. HP docking stations have their own firmware that needs occasional updates. Download the HP Firmware Installer from the dock’s support page on hp.com and run it while the dock is connected. Outdated dock firmware is a common cause of intermittent disconnections and display flickering.

If the dock charges the laptop but doesn’t output video, try connecting the monitor directly to the laptop’s USB-C or HDMI port (bypassing the dock). If the laptop can drive the monitor directly but not through the dock, the issue is the dock itself. If the laptop can’t drive the monitor directly either, the issue is the laptop’s port or driver.

HP Docking Station Compatibility FAQs

Can I use an HP docking station with a non-HP laptop?

Yes, for USB-C and Thunderbolt docks. The HP USB-C Dock G5 and HP Thunderbolt Dock G4 work with any laptop that has a compatible USB-C or Thunderbolt port, regardless of brand. Dell, Lenovo, ASUS, Apple MacBook: they all use the same USB-C/Thunderbolt standards. The proprietary HP UltraSlim docking connector is the exception. That only works with specific HP models.

Will an HP dock charge my laptop?

If your laptop supports USB-C Power Delivery (most modern business laptops do), yes. The HP USB-C Dock G5 delivers up to 100W, which is enough for most HP EliteBooks and ProBooks. The Thunderbolt Dock G4 delivers up to 120W, handling even power-hungry ZBook workstations. The dock replaces your laptop’s AC adapter: one cable for everything. If your laptop requires more wattage than the dock provides, it may charge slowly or not at all under heavy load.

Why does my HP dock only show one monitor when I have two connected?

This usually means your laptop’s USB-C port doesn’t support enough display bandwidth for two monitors at the resolution you’re trying to use. Try reducing both monitors to 1080p. If two monitors work at 1080p but not at 4K, you need a Thunderbolt dock and a Thunderbolt port on your laptop for dual 4K. Also check that both monitors are connected to the dock’s video output ports (DisplayPort or HDMI), not to USB-C downstream ports.

Do HP docks support Mac laptops?

USB-C and Thunderbolt HP docks work with MacBook Pro and MacBook Air models that have USB-C or Thunderbolt ports. The HP USB-C Dock G5 and Thunderbolt Dock G4 are both compatible. However, Mac laptops have display output limits depending on the Apple Silicon chip (M1 MacBook Air supports only one external display natively, M3/M4 MacBook Air supports two with lid closed). The dock can’t override the laptop’s hardware limitations.

Is the HP UltraSlim docking station still worth buying?

Only if you have a compatible older HP laptop with the proprietary docking connector. The UltraSlim dock is discontinued and no longer receives firmware updates. If you’re buying a new dock, go with the USB-C Dock G5 or Thunderbolt Dock G4 instead. These work with current and future laptops that use USB-C/Thunderbolt, giving you a dock that survives your next laptop upgrade.

What is the difference between USB-C and Thunderbolt for docking?

They use the same physical port and connector, but Thunderbolt moves data faster (40 Gbps vs 10 Gbps for USB 3.2) and supports more simultaneous displays. Think of USB-C as a two-lane road and Thunderbolt as an eight-lane highway. Both get you where you’re going, but Thunderbolt handles more traffic at once. For single-monitor setups with basic peripherals, USB-C is plenty. For dual 4K monitors, external storage drives, and multiple USB devices all running at once, Thunderbolt gives you the bandwidth headroom.
