Connecting an external monitor to a laptop doubles your usable screen space. You get one screen for your main work and another for reference material, chat apps, or anything else you need open. The process takes about a minute on both Windows and macOS once you have the right cable.
Most laptops made after 2018 have either an HDMI port or a USB-C port that supports video output. Some have both. Older laptops may use VGA or mini DisplayPort instead. The key is matching the cable or adapter to your laptop’s port and your monitor’s input. After the physical connection, a quick settings change puts both screens to work.
What Cable Do I Need to Connect a Monitor to My Laptop
The cable you need depends on two things: the port on your laptop and the input on your monitor. Most modern monitors accept HDMI. Most modern laptops have either HDMI or USB-C. If both your laptop and monitor have HDMI, a standard HDMI cable is all you need – no adapter required.
If your laptop only has USB-C ports (common on newer ultrabooks and MacBooks), you will need either a USB-C to HDMI adapter or a USB-C to DisplayPort adapter, depending on your monitor’s input. Some monitors now include a USB-C input, which lets you use a single USB-C cable for both video and charging.
| Cable or Adapter | When to Use | Max Resolution Supported |
|---|---|---|
| HDMI to HDMI | Laptop has HDMI port, monitor has HDMI input | 4K at 60Hz (HDMI 2.0) or 4K at 120Hz (HDMI 2.1) |

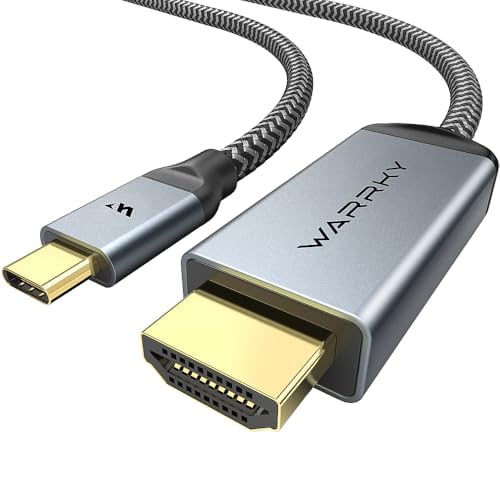

| USB-C to HDMI adapter | Laptop has USB-C only, monitor has HDMI input | 4K at 60Hz (check adapter specs) |
| USB-C to USB-C | Both laptop and monitor have USB-C with video support | 4K at 60Hz or higher depending on Thunderbolt version |
| USB-C to DisplayPort | Laptop has USB-C, monitor has DisplayPort input | 4K at 60Hz or 144Hz depending on cable version |
| DisplayPort to DisplayPort | Laptop has full-size DisplayPort (rare), monitor has DisplayPort | 4K at 144Hz (DP 1.4) or 8K at 60Hz (DP 2.0) |

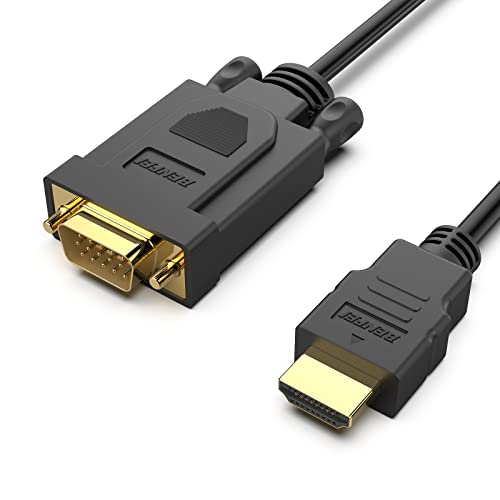

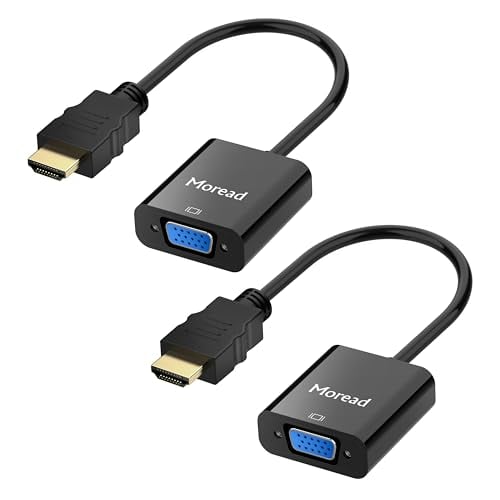

| VGA to VGA | Older laptop with VGA port, older monitor with VGA input | 1920 x 1080 at 60Hz (analog signal, no audio) |
| Mini DisplayPort to HDMI | Older MacBooks or Surface laptops with Mini DisplayPort | 4K at 30Hz or 4K at 60Hz depending on adapter |
One thing to check before buying an adapter: not every USB-C port supports video output. Some USB-C ports only handle data and charging. Look for a small DisplayPort icon or Thunderbolt icon (a lightning bolt) next to the port. If neither icon is present, check your laptop’s spec sheet to confirm the port supports “DisplayPort Alt Mode.”
How to Connect External Monitor to Windows Laptop
Windows makes dual-screen setup straightforward. The operating system usually detects the external monitor the moment you plug it in. If the monitor doesn’t show anything right away, a keyboard shortcut fixes it in seconds.
- Power on your external monitor and make sure it is set to the correct input source (HDMI 1, HDMI 2, DisplayPort, etc.).
- Connect the cable from your laptop’s video port to the monitor’s input. Use HDMI, USB-C to HDMI, or whichever cable matches your setup.
- Press Windows + P on your keyboard. A menu appears on the right side of your screen with four display mode options.
- Select Extend. This turns the external monitor into a second screen, giving you separate desktops on each display.
- Right-click on your desktop and select Display settings (or go to Settings, then System, then Display).
- In the display arrangement section at the top, drag the monitor rectangles to match their physical position on your desk. If the external monitor sits to the left of your laptop, drag the “2” rectangle to the left of “1.”
- Scroll down to set the resolution for each display. Windows usually picks the native resolution automatically, but if text looks blurry or stretched, select the recommended resolution from the dropdown.
- To change which screen is your main display, click the monitor you want as primary and check “Make this my main display.” The taskbar and desktop icons will move to that screen.
On Windows 11, you can also show the taskbar on both screens. Go to Settings, then Personalization, then Taskbar, then Taskbar behaviors, and toggle “Show my taskbar on all displays” to on. This puts a taskbar on both your laptop screen and the external monitor.
How to Connect External Monitor to Mac Laptop
Connecting a monitor to a MacBook works similarly, though the steps happen in different menus. macOS automatically detects most monitors when you plug them in.
- Connect the cable or adapter from your MacBook to the external monitor. Most MacBooks from 2016 onward use USB-C or Thunderbolt ports, so you will likely need a USB-C to HDMI adapter unless your monitor has a USB-C input.
- Power on the monitor and wait a few seconds. macOS should detect it and either extend or mirror your display.
- Open System Settings (or System Preferences on older macOS versions) and click Displays.
- You will see both displays listed. Click Arrange (on older macOS) or look for the arrangement section. Drag the display rectangles to match the physical layout on your desk.
- Make sure Mirror Displays is unchecked. Mirroring shows the same content on both screens. Unchecking it gives you extended desktop mode with separate content on each display.
- To set the resolution for the external monitor, click on that display in the settings and choose Default for display (recommended) or Scaled to pick a specific resolution.
- To change the primary display, drag the small white menu bar rectangle from one display to the other in the arrangement view. Whichever display has the white bar acts as the main screen.
MacBooks with Apple Silicon (M1, M2, M3, M4) support at least one external display with the lid open. The MacBook Pro models with M1 Pro, M1 Max, M2 Pro, M2 Max, M3 Pro, M3 Max, M4 Pro, and M4 Max chips support two or more external displays natively. Check Apple’s support page for your specific model’s display limit.
What Are the Different Display Modes on a Laptop
When you connect an external monitor, your operating system offers several display modes. Each one handles the two screens differently. The mode you want for productivity is almost always “Extend,” but the others have their uses too.
| Display Mode | What It Does | Best Used For |
|---|---|---|
| PC screen only / Disconnect | Uses only the laptop screen, external monitor stays off | When you want to disconnect without unplugging |
| Duplicate / Mirror | Shows the same image on both screens | Presentations, sharing your screen with an audience |
| Extend | Uses both screens as one large desktop, each showing different content | Productivity, multitasking, coding, design work |
| Second screen only | Turns off the laptop screen, uses only the external monitor | Using a larger monitor at a desk with the laptop lid closed |
On Windows, press Windows + P to switch between these modes at any time. On macOS, toggle the Mirror Displays checkbox in System Settings to switch between Extend and Duplicate. To use “second screen only” on a Mac, close the laptop lid while it is connected to power, an external keyboard, and a mouse – this activates clamshell mode.
How to Set Up Dual Screens for Productivity
Having two screens is only useful if you arrange them in a way that actually speeds up your work. The most common setup puts the external monitor directly in front of you as the primary screen and positions the laptop screen off to one side for secondary tasks.
If your external monitor is larger than your laptop screen (most are), use it for your main work. Spreadsheets, documents, code editors, and design tools all benefit from the extra screen space. Keep your laptop screen for chat apps, email, music, or reference material you glance at occasionally.
On Windows 11, right-click the taskbar, select Taskbar settings, and enable “Show my taskbar on all displays.” This makes it easier to launch apps and switch windows on either screen without reaching for the other one. You can also choose whether to show all open windows on both taskbars or only the windows that are on that specific display.
Keyboard shortcuts help when managing windows across two screens. On Windows, press Windows + Shift + Left Arrow or Windows + Shift + Right Arrow to move the active window from one screen to the other. On macOS, drag a window to the edge of the laptop screen and it will move to the external display.
Why Is My External Monitor Not Detected
A monitor that stays dark or shows “No Signal” after connecting is usually a cable, port, or settings issue. Most of the time the fix takes less than a minute.
Check the cable connection. Unplug both ends of the cable and plug them back in firmly. A loose HDMI or USB-C connection is the most common reason a monitor does not detect a signal. Try a different cable if you have one available – cables do go bad.
Check the monitor’s input source. Most monitors have multiple inputs (HDMI 1, HDMI 2, DisplayPort). Use the monitor’s built-in menu or input button to make sure it is set to the port you plugged the cable into. This is the second most common cause of “No Signal” messages.
Restart detection on Windows. Go to Settings, then System, then Display, and click Detect. Sometimes Windows does not recognize the monitor automatically, and clicking this button forces it to scan for connected displays. You can also press Windows + P and select “Extend” to trigger detection.
Restart detection on macOS. Open System Settings, click Displays, then hold the Option key. A “Detect Displays” button will appear. Click it to force macOS to scan for the monitor.
Update your graphics driver. An outdated GPU driver can prevent external display detection. On Windows, open Device Manager, expand Display adapters, right-click your graphics card, and select “Update driver.” On macOS, install any pending macOS updates since display drivers are bundled with the operating system.
How to Fix Wrong Resolution on External Monitor
If text looks blurry, icons look oversized, or the image appears stretched on your external monitor, the resolution or scaling is wrong. Both Windows and macOS sometimes pick an incorrect resolution, especially with older monitors or certain adapters.
On Windows, go to Settings, then System, then Display. Click on the external monitor in the display arrangement and scroll down to “Display resolution.” Select the resolution marked “Recommended” – this matches the monitor’s native resolution. If the recommended option is not the monitor’s actual native resolution, your cable or adapter might not support the full resolution.
On macOS, go to System Settings, click Displays, select the external monitor, and choose “Default for display.” If the text is still too small or too large, select “Scaled” and pick the option that looks best.
Scaling differences between screens are common when pairing a high-resolution external monitor with a lower-resolution laptop screen (or vice versa). On Windows, you can set different scaling percentages for each display in Settings under Display. A 4K 27-inch monitor often works well at 150% scaling, while a 1080p laptop screen looks right at 100% or 125%. On macOS, each display gets its own scaling option in the Displays settings.
How to Fix Black Screen on External Monitor
A black screen is different from “No Signal.” With a black screen, the monitor detects the laptop but shows nothing. The backlight may be on (the screen looks dark gray rather than fully off), but no image appears.
Try pressing Windows + P and selecting “Extend” or “Duplicate.” Sometimes the display mode gets set to “PC screen only,” which sends no signal to the external monitor even though the cable is connected. On macOS, open System Settings and click Displays to make sure the external monitor is not set to a resolution the monitor cannot handle.
If the screen stays black, try a different cable. HDMI cables that are too long (over 15 feet for passive cables) or low-quality USB-C adapters can cause a black screen even though the connection seems solid. A cable rated for the resolution you need fixes this in most cases.
On some laptops, closing and reopening the lid triggers the display output to reset. This works as a quick fix on both Windows and Mac when the external monitor is connected but showing nothing.
Frequently Asked Questions
Can I extend my laptop screen to a monitor wirelessly?
Yes. On Windows, you can connect wirelessly using Miracast. Press Windows + P, select “Connect to a wireless display,” and choose your Miracast-compatible monitor or TV. Not all monitors support Miracast – most smart TVs and some wireless display adapters like the Microsoft Wireless Display Adapter do. On macOS, AirPlay lets you extend your screen to an Apple TV or AirPlay-compatible smart TV. Go to System Settings, then Displays, and click the “+” button to add a wireless display. Wireless connections have more latency than a cable, so they work best for reference screens rather than fast-moving content.
Do I need a special cable to connect my laptop to a monitor?
Not necessarily. If your laptop has an HDMI port and your monitor has an HDMI input, a standard HDMI cable is all you need. These cost between $5 and $15. If your laptop only has USB-C ports, you will need a USB-C to HDMI adapter (around $10 to $20) plus an HDMI cable, or a single USB-C to HDMI cable. The cable does not need to be from the same brand as your laptop or monitor. Any cable that matches the ports will work, though you should make sure it supports the resolution and refresh rate you want.
Will using an external monitor drain my laptop battery faster?
Yes, but the difference is smaller than you might expect. Driving an external display increases GPU and video output workload, which uses more power. In practice, expect about 10 to 20 percent faster battery drain compared to using the laptop screen alone. The impact depends on the external monitor’s resolution – a 4K display requires more processing power than a 1080p monitor. If battery life is a concern, keep your laptop plugged in when using a second screen.
Can I use a TV as an external monitor for my laptop?
Yes. Any TV with an HDMI input works as an external monitor. Connect it the same way you would connect a regular monitor – HDMI cable from the laptop to the TV, then set the TV’s input to the correct HDMI port. The main downsides are higher input lag and potential overscan (the image may be slightly cut off at the edges). Enable “PC Mode” or “Game Mode” in your TV’s settings to reduce input lag. Adjust the display resolution in your laptop’s settings if the image does not fill the screen correctly.
How do I stop my laptop screen from turning off when I connect a monitor?
Your laptop screen turns off because the display mode is set to “Second screen only” instead of “Extend.” On Windows, press Windows + P and select Extend. On macOS, this typically happens in clamshell mode – opening the laptop lid should activate the built-in display again. If the laptop screen stays off with the lid open, go to Display settings and make sure both displays are enabled.
See also: How to Connect HP Laptop to Projector, How to Connect 2 Monitors to Chromebook, How to Connect Two Monitors to Mac Mini
Sources
Microsoft Support – Set Up Dual Monitors on Windows | Apple Support – Use an External Display With Your Mac
